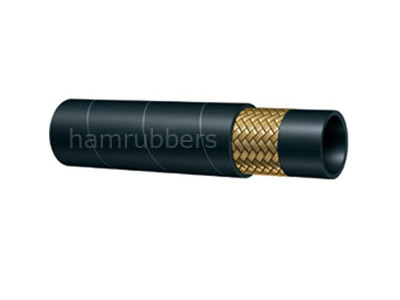

SAE 100R17 Wire Braided Hydraulic Hose
Description:
Inner Tube: oil resistant synthetic rubber
Reinforcement: one or two high tensile steel wire braid
Cover: oil, abrasion and weather resistant synthetic rubber
Temperature Range: -40°C to +100°C
Application: Medium pressure service with tight bends for petroleum and water-based hydraulic fluids. Excellent impulse performance and flexibility exceeding SAE 100R1 standards.
|
DN |
Hose ID |
Wire OD |
Hose OD |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
|||
|
inch |
mm |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
Kg/m |
|
|
6 |
1/4 |
6.4 |
10.5 |
12.5 |
21.0 |
3045 |
84.0 |
12180 |
50 |
0.19 |
|
8 |
5/16 |
7.9 |
12.0 |
14.3 |
21.0 |
3045 |
84.0 |
12180 |
55 |
0.22 |
|
10 |
3/8 |
9.5 |
13.9 |
16.5 |
21.0 |
3045 |
84.0 |
12180 |
65 |
0.27 |
|
13 |
1/2 |
12.7 |
17.6 |
19.7 |
21.0 |
3045 |
84.0 |
12180 |
90 |
0.46 |
|
16 |
5/8 |
15.9 |
21.9 |
24.0 |
21.0 |
3045 |
84.0 |
12180 |
100 |
0.57 |
|
19 |
3/4 |
19.0 |
25.7 |
28.0 |
21.0 |
3045 |
84.0 |
12180 |
120 |
0.78 |
|
25 |
1 |
25.4 |
33.8 |
36.2 |
21.0 |
3045 |
84.0 |
12180 |
150 |
1.14 |
Qingdao Haianmei Rubbers Co., Ltd is a professional manufacturer of SAE 100R17 Wire Braided Hydraulic Hose in china.
